EQ83-35855 | Cast Equalizer Beam w/Bushing

EQ83-35855 - Cast Equalizer Beam w/Bushing

{{exactOrNear}} to {{searchTerm}}

Item	Description
ATRO #	EQ83-35855
VMRS #
Category	Trailer
Description	Cast Equalizer Beam w/Bushing
Availability
Your Price ($USD)
Shipping Weight	28.37 lbs
UPC Code	751354037357
Part Dimensions	Length=16" Width=3.875"
Inside Diameter
Outside Diameter — Reference
Outside Diameter — Large
Outside Diameter — Small
Qty Per Vehicle	2
Contains Bushings	EQ83-35902

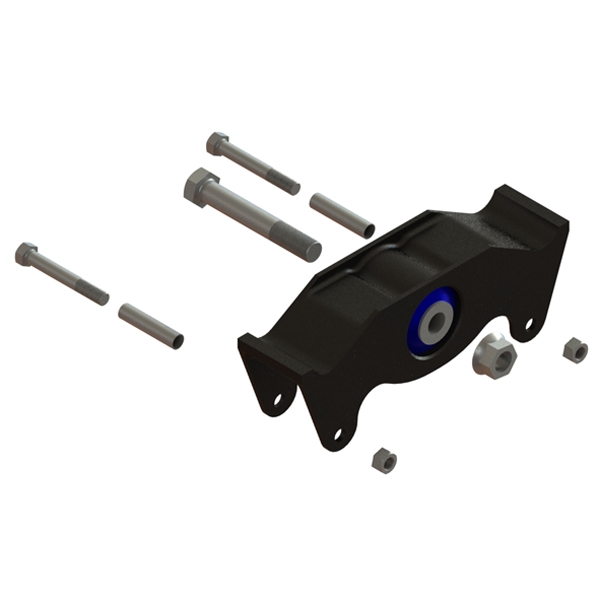

Includes Kit Components	(1) Cast Equalizer Beam (1) EQ83-35902 Bushing (1) 1" Bolt (1) Flanged Locknut (2) 5/8" Bolt (2) 5/8" Locknuts (2) Spacer Sleeves
Misc. Specs	Bolt Hole: 1"
Install Tool
Removal Tool
Tool Handle
Misc. Tool
Documentation	Product Announcement
Warranty	U.S./Canada/Export-1 Year

Additional specs or content for this part go here.

Enter the Custom Torque Rod C-C length: (example 29 1/2)

/ "

Parts Cross Reference

OEM/Brand	Cross Reference	Application Notes
Automann	EQ041	Beam W/Bushing
Automann	SRL02	Rebound Bolt Assembly
Dayton Parts	334-343	Rebound Bolt Assembly
Dayton Parts	338-871	Beam W/Bushing
Euclid	E-1020	Beam W/Bushing
Euclid	E-4835	Rebound Bolt Assembly
Meritor	R3010250	Beam W/Bushing
Meritor	R304835	Rebound Bolt Assembly
Reyco	0850-00	Beam W/Bushing 86/88/89 Trailer Four Spring
Reyco	0741-00	Rebound Bolt Assembly
