Description

This air suspension is a Hendrickson HAS designed for a Mack chassis with 40,000 lbs. capacity. It features a Z-spring main support with large air springs atop a cross channel. The Mack AL is used on CXN, CHN, CX, CH, CV, CT, CL and RD model chassis equipped with either Mack, ArvinMeritor or Eaton rear axles.

This suspension is optimally designed for on-road, line-haul applications (tankers, grocery operations, beverage trucks, car carriers, vans or flatbeds) and situations where ride quality, loaded and unloaded, is important.


 Tech Tips and Additional Resources

ATRO offers replacements for the torque rods, torque rod bushings and the slipper wear pads (with or without hardware):

Torque Rods

  • Transverse rod
    • TR62-41183 – 18 ¼" c-c with standard bushings, TS38000/TM38000; rotating pin for easy installation, chemically resistant poly (replaces OE# 25168854)
  • Longitudinal rods
    • TR62-417M1 – 14.41" c-c length, small eye rod, TS00-22500 in each end; rotating pin, chemically resistant poly (OE# 25112948)
    • TR50-41102 – 14 3/8" c-c, standard eye rod option, TS38000 (2 ¾" outer diameter), rotating pin, chemically resistant poly
    • TR50-45950 – adjustable, small eye rod, TS00-22500 in each end; rotating pin, chemically resistant poly (OE# 25168255)
    • Both the TR62-417M1 and TR50-45950 are replacing OE rods that have rubber jam-style bushings with 1 7/8" outer diameters. ATRO’s TS00-22500 only fit ATRO’s rods – the 2" outer diameter makes room for an outer sleeve. This outer sleeve achieves a press-fit into the rod and allows for inner pin rotation.
    • To rebush OE rod with ATRO Poly, use PL1146 (no outer sleeve, no pin rotation)

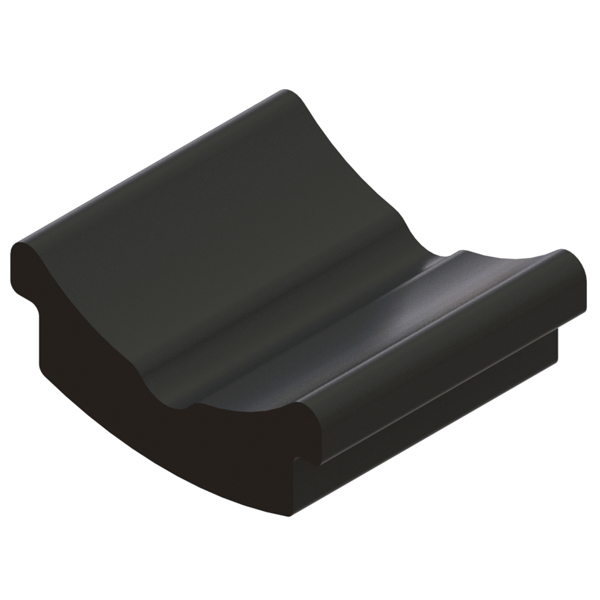

Wear Pads


 Wear Items


 Key Parts

ATRO Wear Pad Kits WP50-29005, WP50-29004
Wear Pad Kits

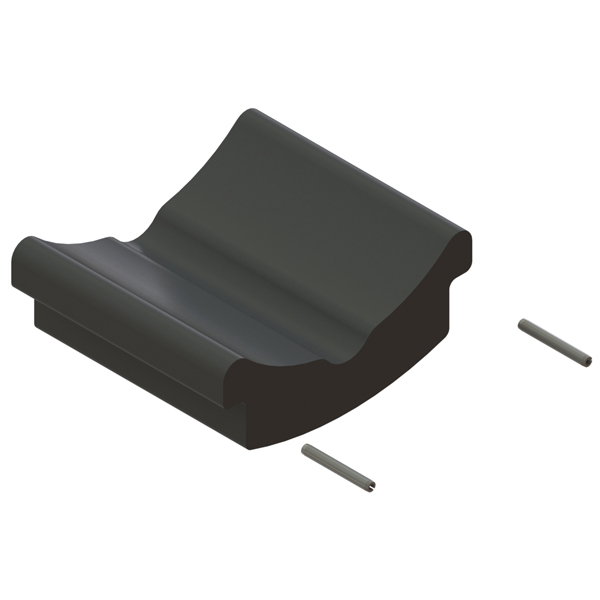

WP50-29005 (kit w/lock pins)
WP50-29004 (kit w/retaining clips)

All Products
ATRO Torque Rod Straddle/Taper TR62-41183
Torque Rod Straddle/Taper

TR62-41183

All Products

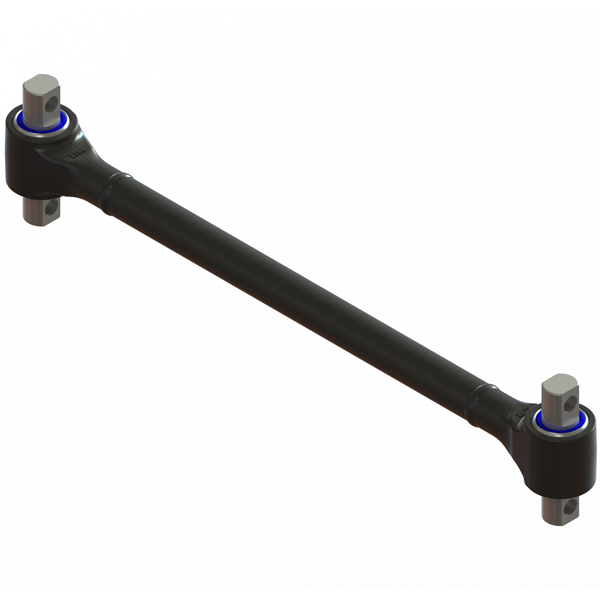

ATRO Torque Rod Small Eye TR62-417M1
Torque Rod Small Eye

TR62-417M1

All Products

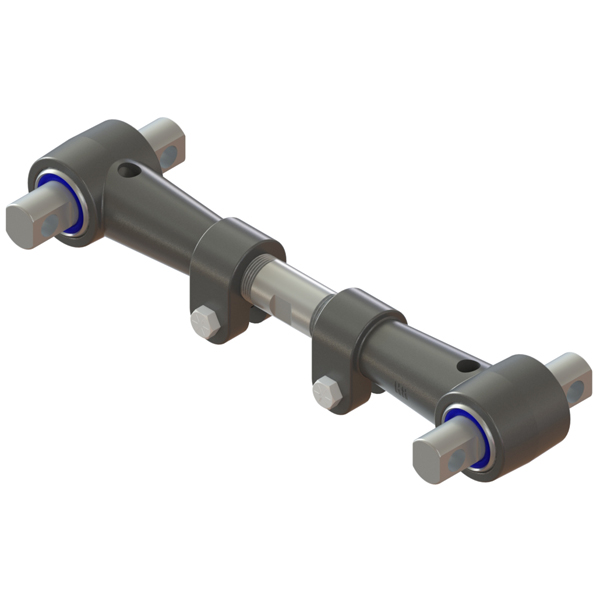

ATRO Torque Rod Adjustable TR50-45950 driver's side
Torque Rod Adjustable

TR50-45950 (driver's side)

All Products
ATRO Torque Rod Standard TR50-41102 passenger's side
Torque Rod Standard

TR50-41102 (passenger's side)

All Products
ATRO Torque Rod Bushing TS00-22500
Torque Rod Bushing

TS00-22500 (pin rotates)
PL1146 (no pin rotation)

All Products

Details

Mack AL40 suspension details
Mack AL40

Torque Rod, Straddle-Taper TR62-41183.

Mack AL40 suspension details
Mack AL40

Torque Rod, Small Eye TR62-417M1.

Mack AL40 suspension details
Mack AL40

Torque Rod, Adjustable TR50-45950 - Driver's Side.
